Facing bricksInfinitum 3003

Technical data sheets

Color description
The colour is red through and through and highly nuanced ranging from red, red-brown to purple-blue.
Manufacturing dimensions (L x W x H)
ca. 500x100x38 mm (LxWxH)
Quantity / m² with a traditional joint
Number / m² with a thin joint

case studie Infinitum 3003

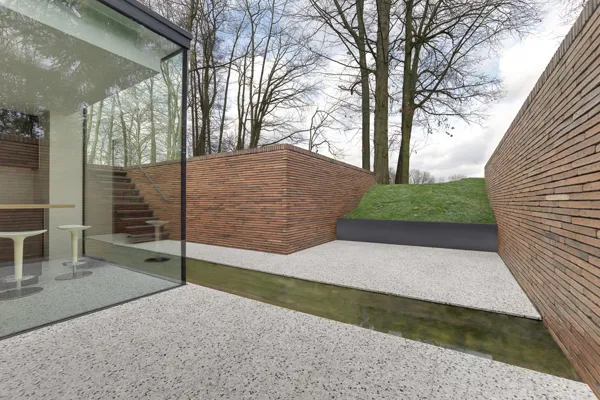

Brick-clad office building with Infinitum 3003, the tone has been set!

Brick-clad office building with Infinitum 3003, the tone has been set!

The link between traditional and innovative architecture

When the project manager and the architect are one and the same person, the outcome is always awaited with keen anticipation.  It invariably leads to unique realisations that exhibit great attention to detail.


Search by city

Reference list Infinitum 3003
Postal code City Street Bond Joint Joint colour Window Roofing Remarks
2000 Antwerpen Van De Wervestraat 39 12 mm

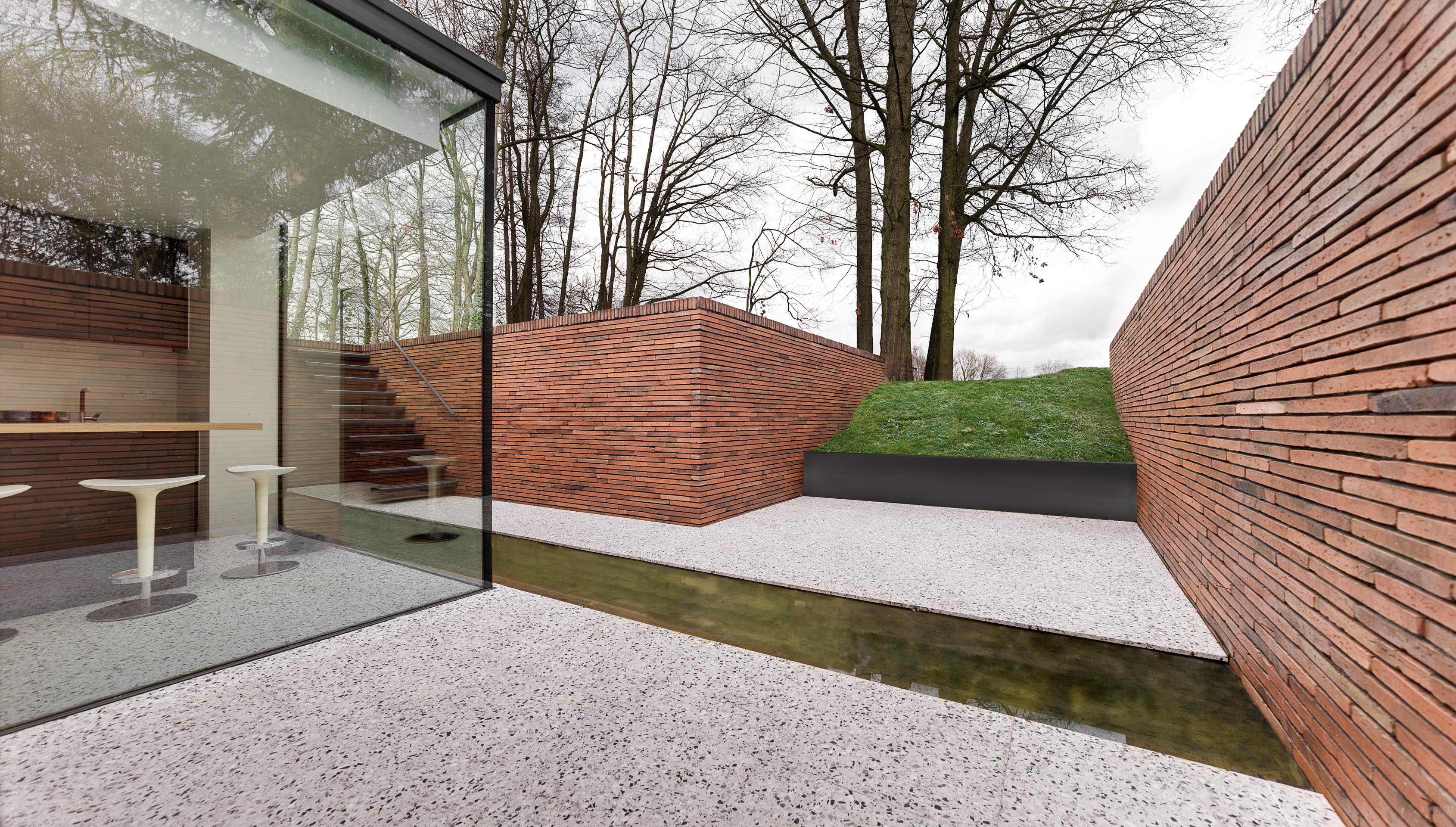

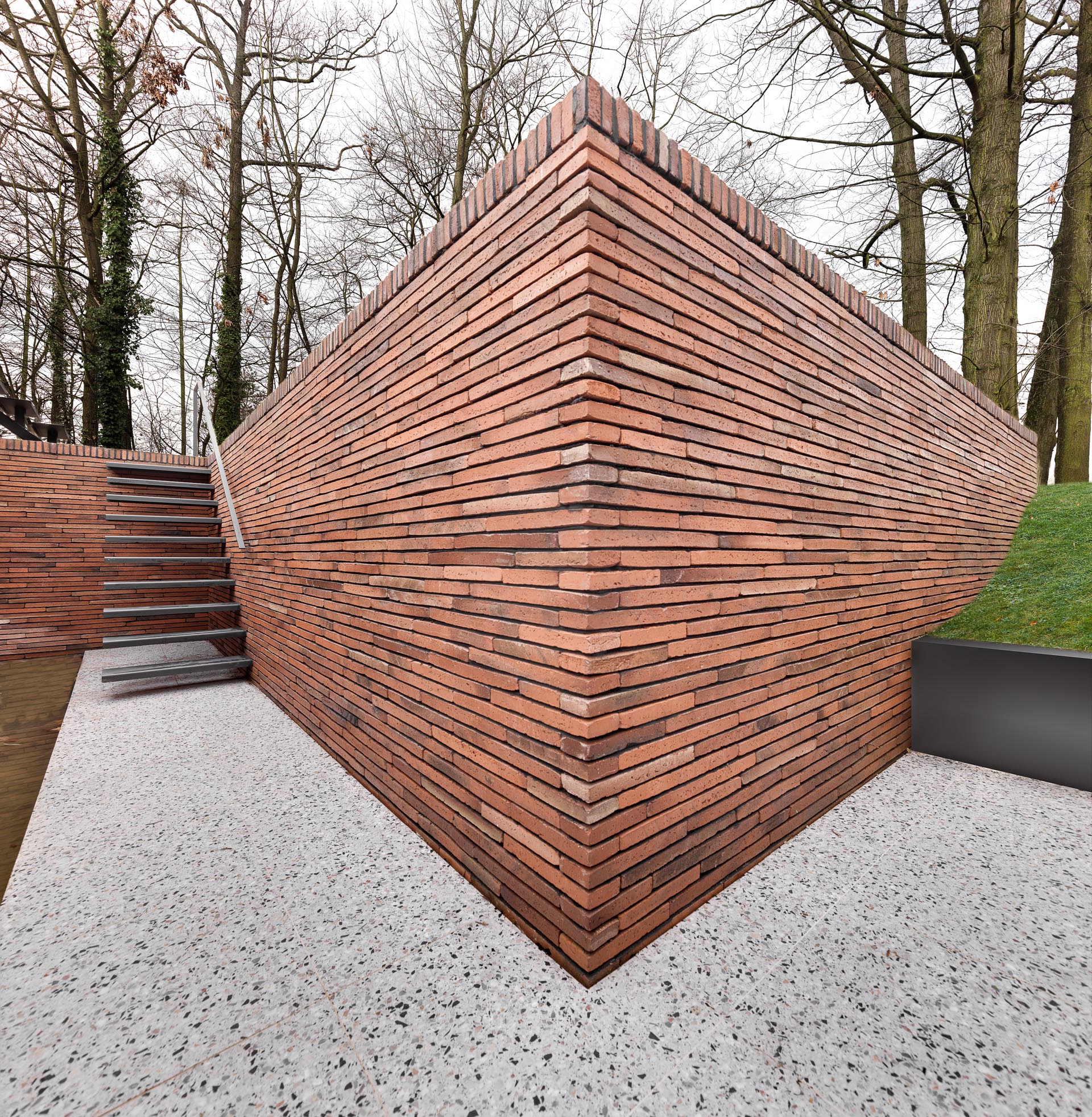

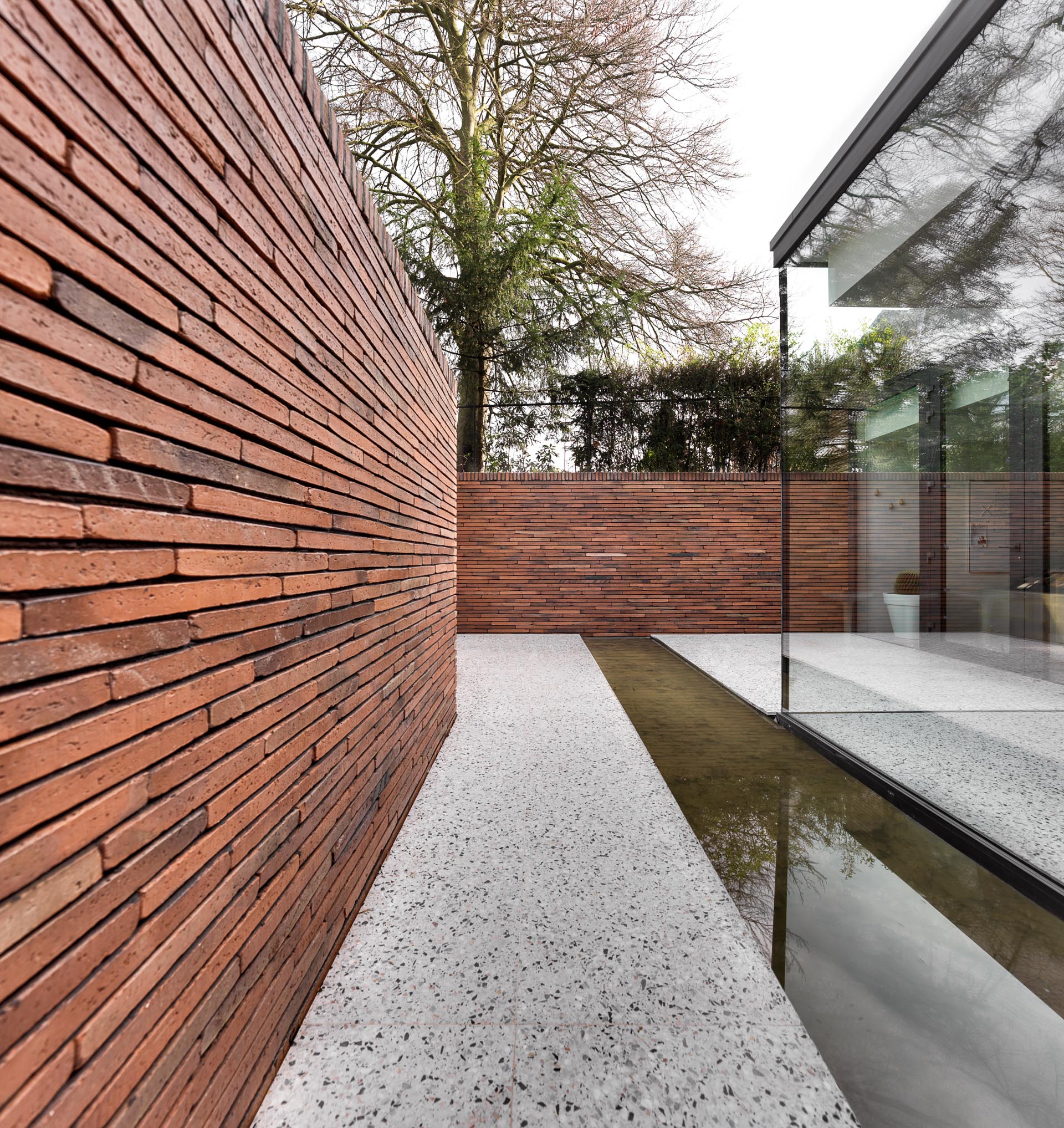

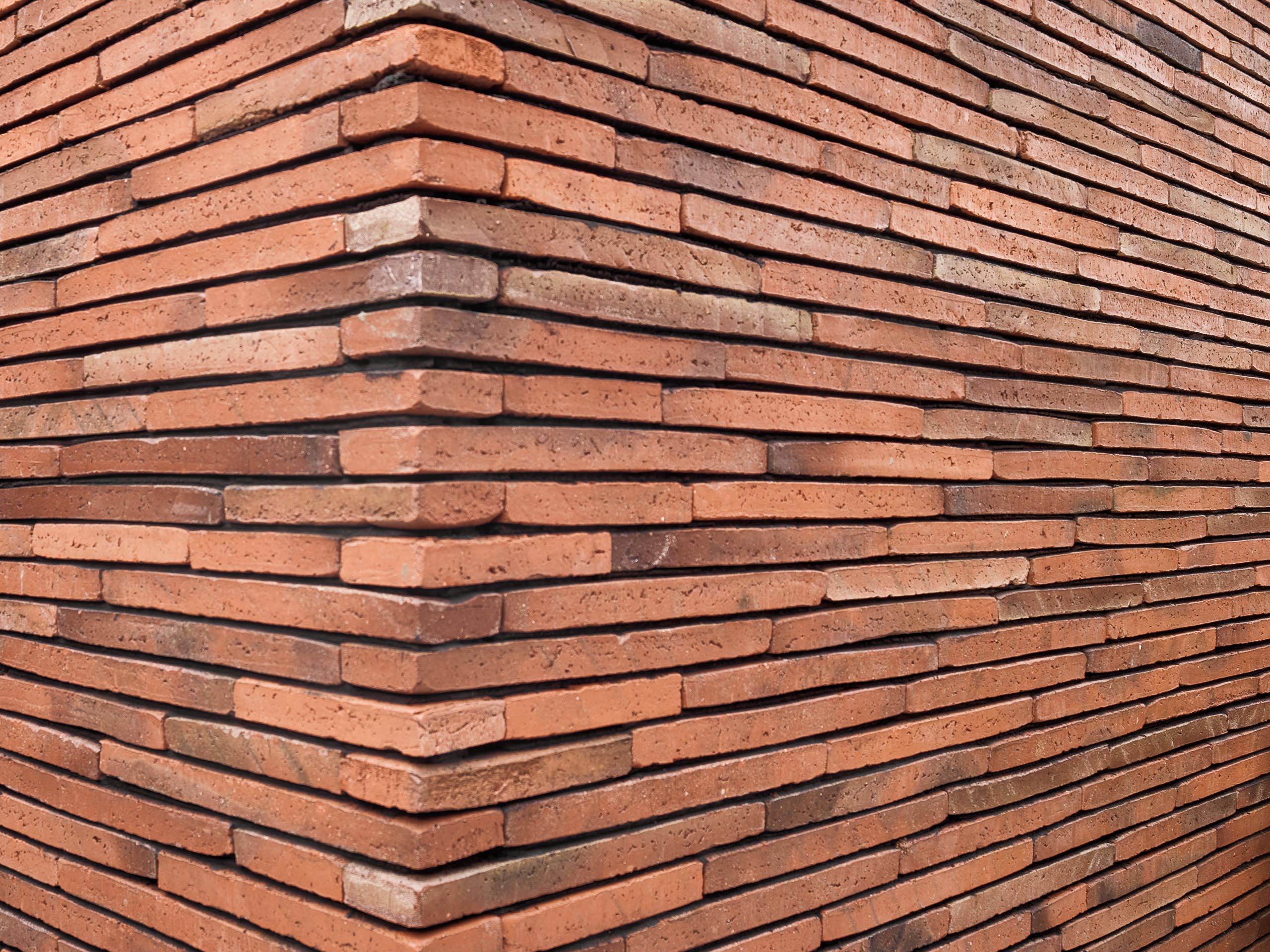

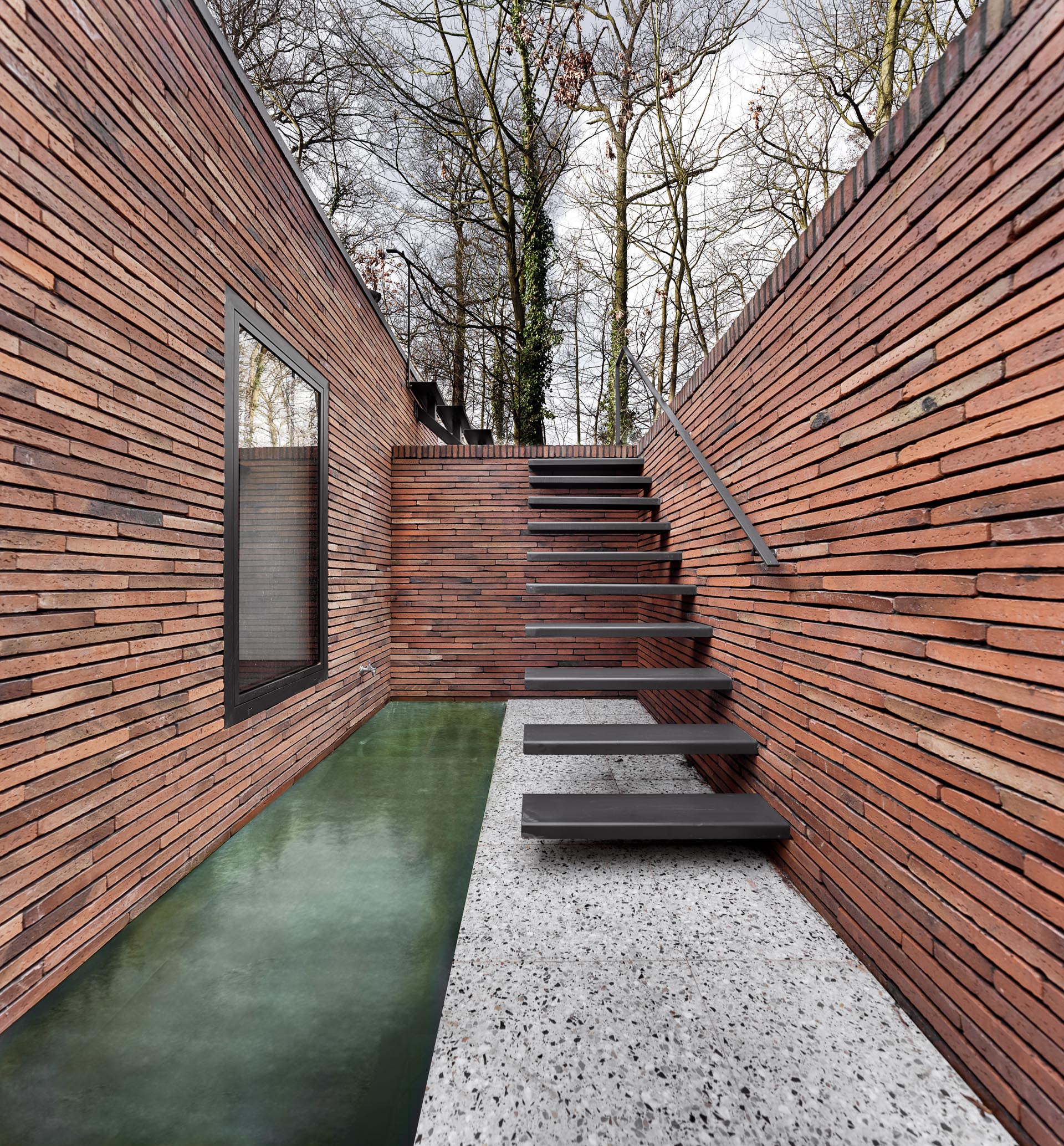

3590 Diepenbeek Varkensmarkt Random bond 6 mm
1050 Elsene Rue de l'Ermitage - Rue de Hennin Random bond 8 mm
3500 Hasselt Guffenslaan 62 Random bond 6 mm
9070 Heusden Heusdendorp 12 Random bond 6 mm

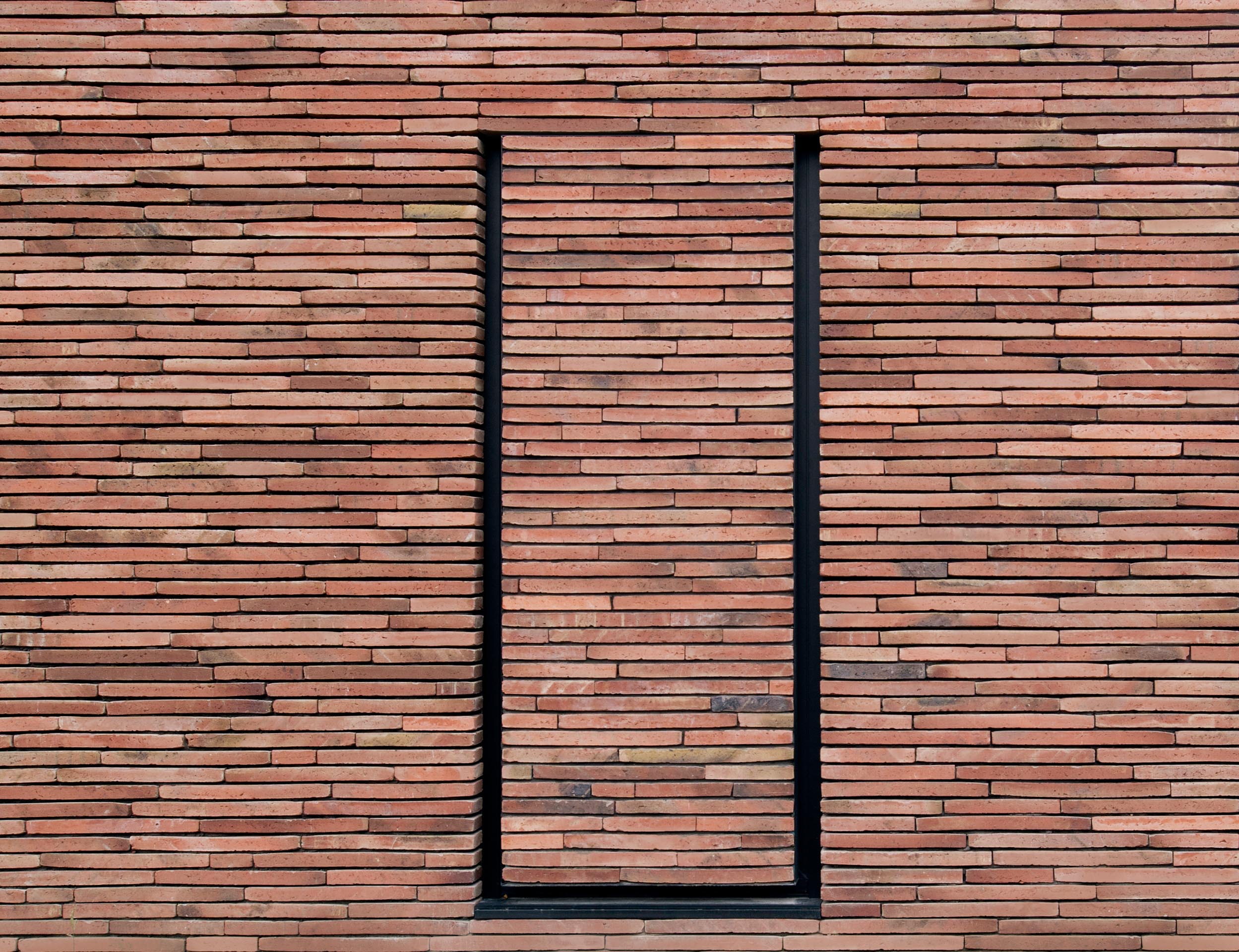

1745 Opwijk Hulst 42 Random bond 6 mm
9406 Outer Outerstraat 103 Random bond 6 mm
9190 Stekene Potaardestraat 46 Random bond 6 mm
Print all

How to Install ?

Preparation of the construction site

Quality brickwork starts with the proper storage of the materials. Provide a firm level base so that bricks are not in contact with rain and/or dirt.
As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.
The following precautions will help minimizing this:
  • Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
  • Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
  • Take bricks diagonally across the pack.
  • Draw and use bricks from at least five different packs.
  • For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
  • As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
  • Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
  • In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
  • Do not lay bricks in precipitation in order to prevent mortar from running on the wall.

Avoid Efflorescence

Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)
Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.
  • During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
  • Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
  • Never lay bricks in driving rain conditions
