Facing bricksLinea7 8012

Technical data sheets

Color description
The bricks are through-coloured and the colour is red purple.
Manufacturing dimensions (L x W x H)
ca. 240x73x38 mm (LxWxH)
Quantity / m² with a traditional joint
80 (12 mm)
Number / m² with a thin joint
93 (6 mm)
size 2
ca. 240x115x38 mm (LxWxH) - on demand for projects > 2000m²

case studie Linea7 8012

Linea 8012 and SeptimA Claret in unique and surprising applications

Linea 8012 and SeptimA Claret in unique and surprising applications

Uniformity as a concept

As the owner of this building is the co-manager of a construction company, this project needed to reference this in every way. The resulting building stands out in more ways than one. Within its environment the building catches - very subtly - the eye architecturally, technically and conceptually.

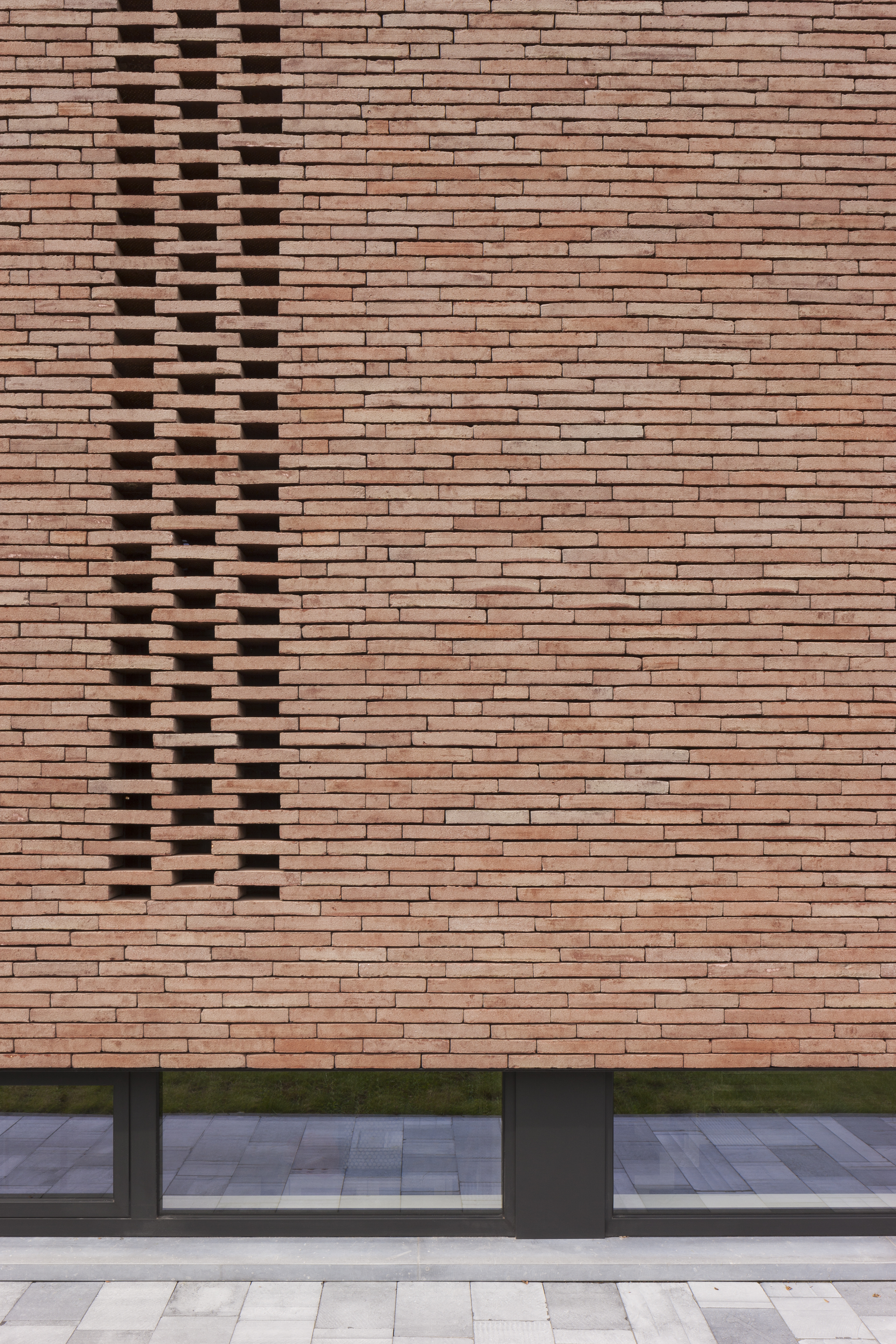

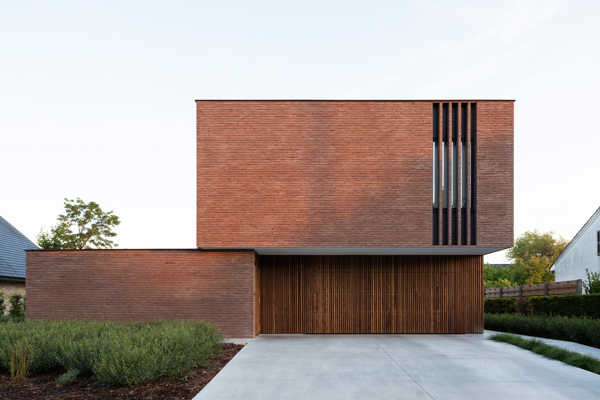

Vertical brick slats in linea7 8012 as an eye-catching feature

Vertical brick slats in linea7 8012 as an eye-catching feature

‘Location, location, location’ inspires creative thinking

This modern villa is situated in a residential district from the 1960s. The original house was demolished in order to build a villa which complied with all the current energy standards. The result: an NZE house with an energy level of E16 which focuses on the aesthetic details.


Search by city

Reference list Linea7 8012
Postal code City Street Bond Joint Joint colour Window Roofing Remarks
3570 Alken Hulzenstraat 5 Random bond 6 mm
3570 Alken Schuilenstraat Random bond 6 mm
8570 Anzegem Vlamingstraat 4a Random bond 4 mm
9890 Asper Luxemburgstraat 94 lot 3B Random bond 6 mm
7800 Ath Rue de Messine 14-16 Random bond 12 mm
7800 Ath Vieux Chemin de Villes Saint Amand 18 Random bond 6 mm
4920 Aywaille Rue Etoile Badin 87
9150 Bazel Lamperstraat 23 Random bond 6 mm
3740 Bilzen Meershoven 143 Random bond 6 mm
5170 Bois de Villers Rue Raymond Noêl 151 Random bond 6 mm
Print all

How to Install ?

Preparation of the construction site

Quality brickwork starts with the proper storage of the materials. Provide a firm level base so that bricks are not in contact with rain and/or dirt.
As clay is a natural material, successive production runs of the same kind of bricks may present colour variations and size tolerances.
The following precautions will help minimizing this:
  • Always order the full amount of bricks required for a specific site. In this way, the entire order can be made during one production run.
  • Try to have the full order supplied at one time. If this creates several deliveries, always mix a number of packs from the previous delivery with a number of packs from the new delivery. This procedure is especially recommended in case of re-order or for an additional order.
  • Take bricks diagonally across the pack.
  • Draw and use bricks from at least five different packs.
  • For setting out, use bricks from the delivery made to the site in question. Do not exclusively use the theoretical dimensions of the brick, or samples previously supplied, or different production run from that intended for the site.
  • As soon as the bricks arrive on site, check delivery tickets and certificates against the specification and order. Also check that there are no visible inconsistencies with the order.
  • Do not lay bricks in freezing weather or protect the ‘fresh’ masonry with insulating mats in order to avoid frost damage to the mortar.
  • In the case of prolonged dry hot weather, lightly dampen the newly laid brickwork to stop the mortar drying and curing too quickly.
  • Do not lay bricks in precipitation in order to prevent mortar from running on the wall.

Avoid Efflorescence

Brickwork is sometimes marred by white bloom. This efflorescence is usually caused because bricklaying is done under unfavourable weather conditions. The necessary protective measures are often not implemented due to a tight schedule and fast building pace. In very wet conditions, water in soluble substances can result in efflorescence on the surface. In spring as well as autumn, after a wet period (when the brickwork has dried again), soluble substances can rise to the surface as a result of moisture transport. After evaporation of the water, a white bloom is left behind. (Source: Efflorescence on brickwork – Heidelberg Cement Group)
Efflorescence on brickwork is always likely to occur. There is no brick - or combination of a certain brick with a specific mortar - that is absolutely efflorescence-free. By taking a few simple precautions, the risk of efflorescence can be reduced.
  • During and after laying, protect the newly built brickwork for a height of at least 60 cm - but ensure there is airspace between the brick face and the waterproof covering.
  • Provisionally install rainwater down pipes to avoid saturation of the newly laid brickwork
  • Never lay bricks in driving rain conditions
